4 axle low loaders trailer heavy duty low bed trailers price 120 ton lowbed 4 axle semi low loader for sale
The lowbed semi-trailer is also widely used for various mechanical equipment, large objects, road construction equipment, large tank, power plant equipment and all kinds of steel transportation.It is widely used, efficient and fast.
Features - TITAN 120 ton low bed lowloader trailer 4 axles
The cargo table is arched ,to avoiding concentrated force and of sound construction .Compared with other company :Their cargo table is flat that easy to concave and beam damage.
Main structure:The main steel structure adopts HG60 high strength structural steel .Compared with the channel，our main steel comes with high strength, strong bearing capacity, not easy to deformation and long service life .
Reinforcement design :the suspension system of our lowbed semi-trailer, will be designed on the strengthening device and between the beam and side beam which can greatly improve the torsional performance of the container and to prolong service life.
The ladder have two kinds : they have spring ladder and hydraulic lander .the both of the material adopt High strength steel for Butt welding.The structure adopt intermediate double vertical plate.our thickness reached 6~8millimeter.
Reinforcement point :Our exported lowbed trailers are usually reinforced ,like gooseneck ,kingpin ,main beam ,Double vertical plate ,and so forth.
Main specification - TITAN 120 Ton Lowbed Trailer 4 axle
Brand: TITAN 120 Ton Lowbed Trailer 4 axles
Overall dimension: 15800mm X 3000mm X 3400mm
Loading capacity: 120 ton
Axle: 4 axles
Suspension: Heavy duty mechanical spring suspension
Tire: 12 units
Landing gear: JOST
Brake system: WABCO
King pin: 90#
Electical system: 24V, LED lights

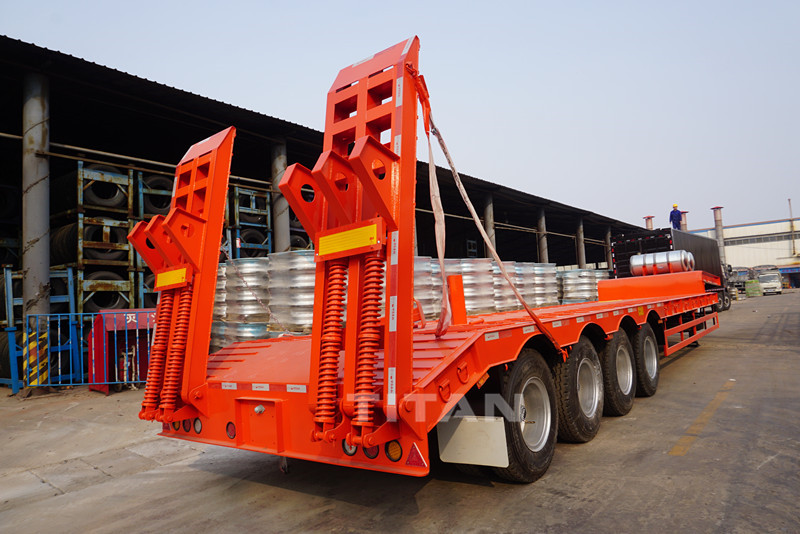

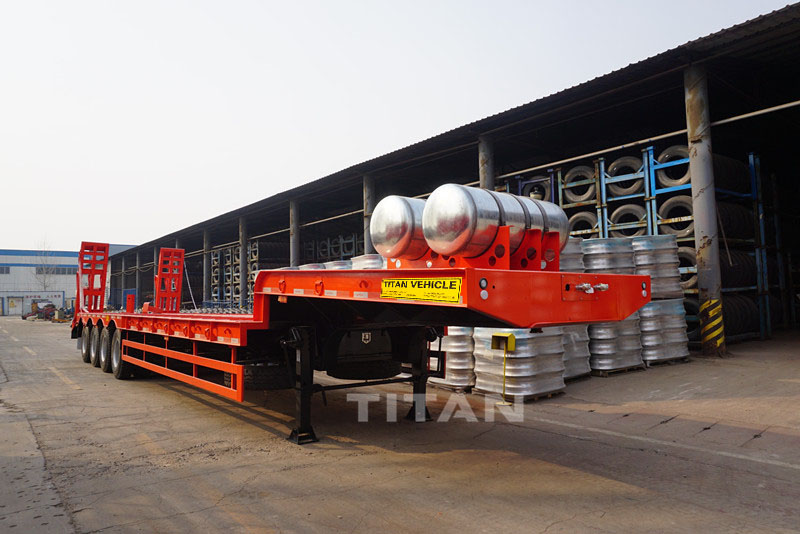

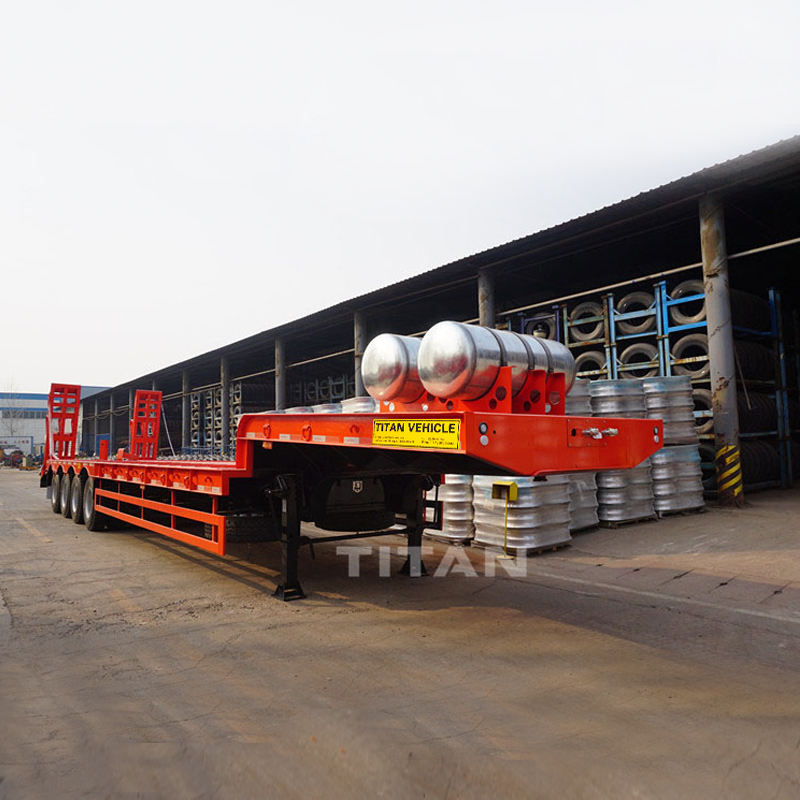

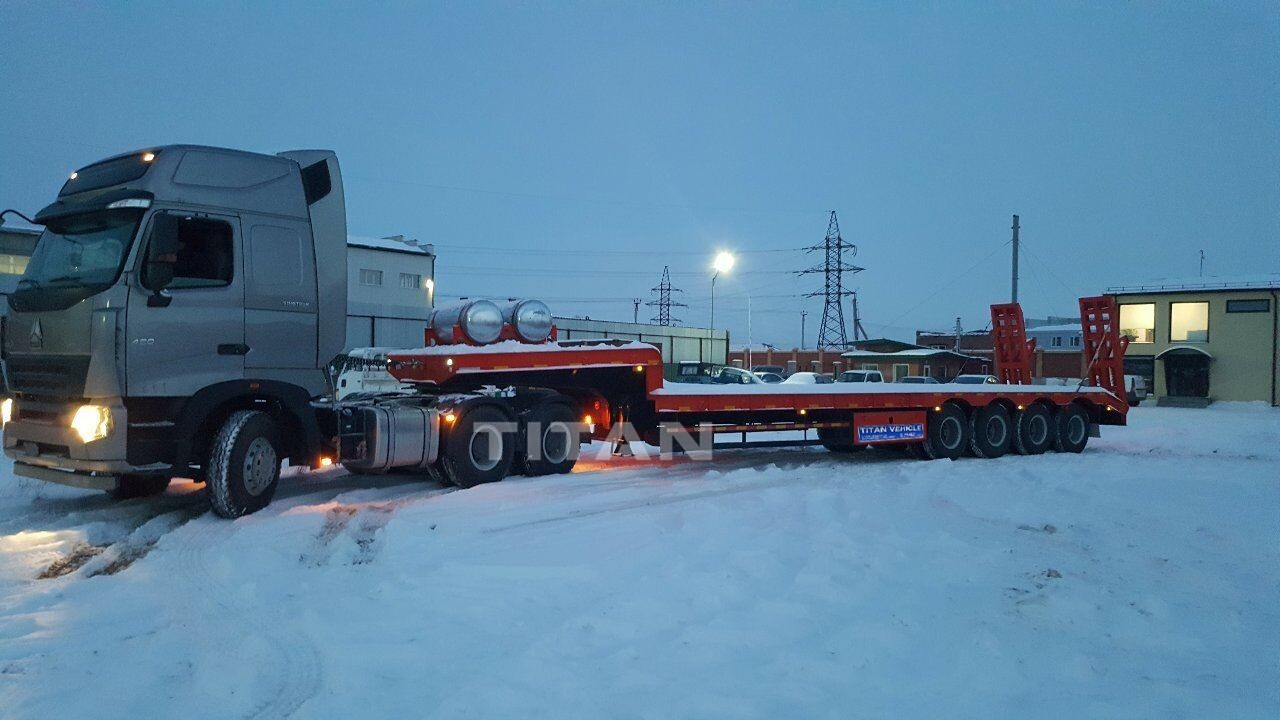

Details of TITAN 120Ton Lowbed Trailer 4 axles
If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
