TITAN Extendable Modular Windmill Turbine Blade Trailer for Carrying Wind Blade.TITAN Extendable Modular Trailer is noted for their highly robust frames and outstanding stability of the extension beam.
TITAN Extendable Modular Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

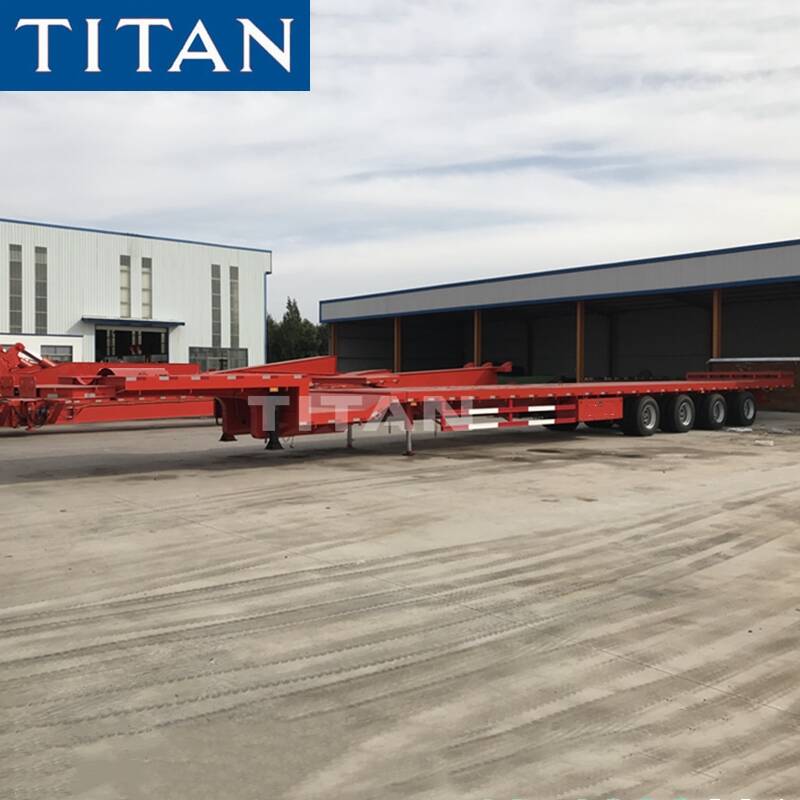

50M Extendable Wind BladeTrailer is used for transportation of Wind Turbine Blade with lengths up to 80m. The 50m extendable trailer is available in extension configurations. All our extendable trailers have the option of using the Air suspension system (for sensitive cargo like wind turbine blades) or Hydraulic suspension system (for heavier payload cargo like Wind Turbine Blade mold transportation).
The 50meter four-axis steering bracket lifts and lowers after the 22.25-meter pull-out gooseneck (four-axle hydraulic steering within 80 meters, or a long-distance blade transport vehicle with hydraulic lift with one bridge, suitable for land blade transportation within 80 meters).

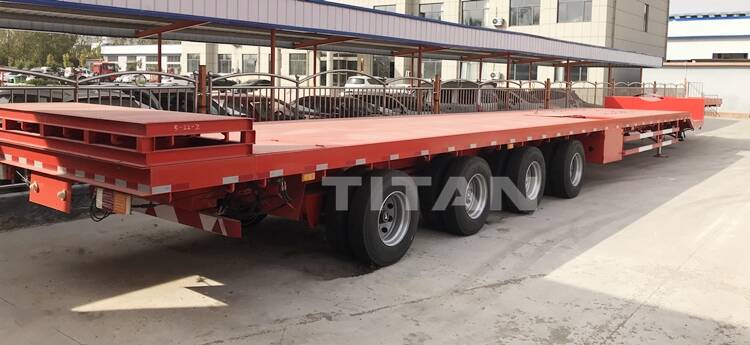

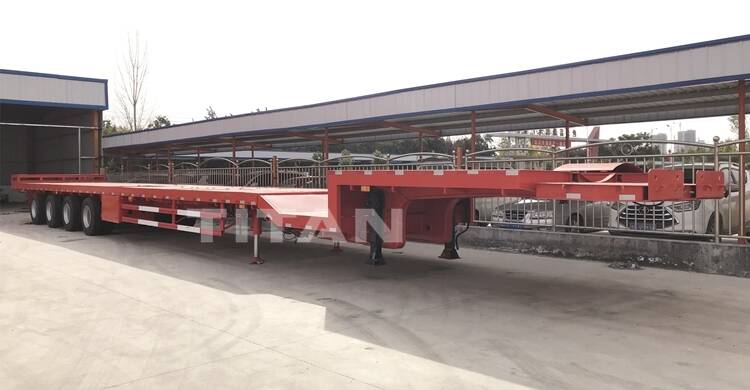

50M Extendable Wind Blade Trailer
4 Axle Extendable Wind Blade Trailer Price
Details of Wind Turbine Transport
1.Trailer's length from 22.25 meters extend to 50 meters
2.Transport the 45 meters to 80 meters Windmill Turbine Blade.
3.Loading capacity is up to 90 ton
4.Steerable axles, all wheels steering.
5.Highly robust frames and outstanding stability of extension beam.
6.Mechanical spring suspension, air suspension or hydraulic suspension is an option
7.Manual valve operation and wireless remote control.

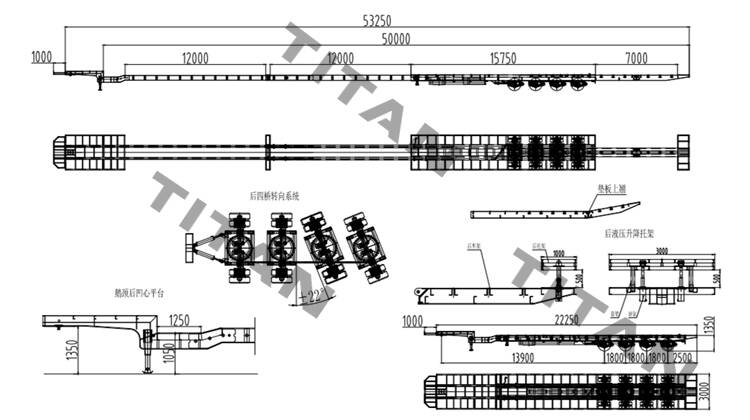

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer
Dimension: 22,450mmX3120mmX 1580mm
Total length: 61,000mm after extension
Loading capacity: 90 Ton
Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic suspension.
Tyre: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200

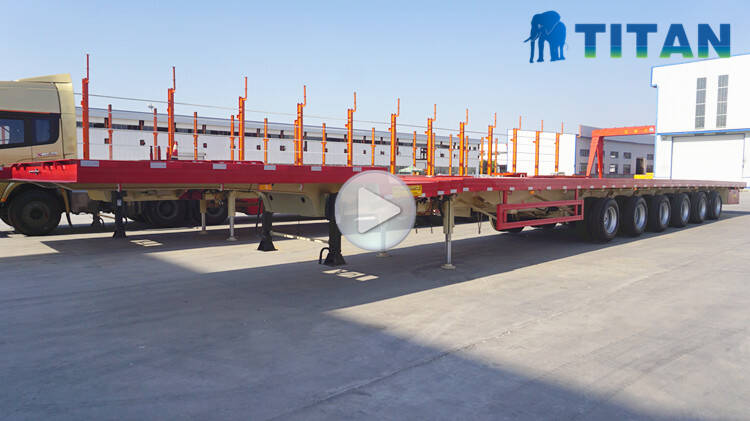

Extendable Wind Blade Trailer details video display

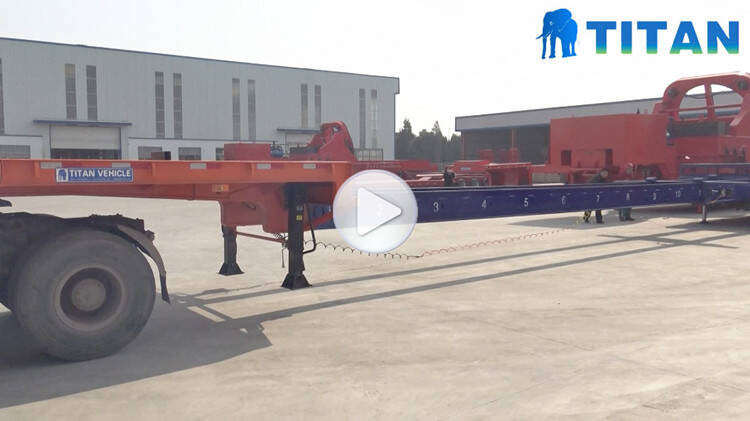

wind blad trailer testing
