Low bed loader low loaders trailer 3 axle 80-ton low bed semi trailer heavy duty low loader trailer for sale
Titan low loader trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material.The greatest advantage of this material is that Each ton of HG60 high strength steel costs 2 times the price of ordinary Q345 steel material; we use it to make sure that our TITAN 80 ton lowbed semi trailer is with a long service life and to avoid unnecessary maintenance. Titan Low bed trailer adopts 550mm main beam, effectively increase the loading capacity by 20%more than ordinary trailer which uses 500mm main beam, ensuring the main beam resistance to twisting forces, shocks and bumps;and to meet load requirements on different kind of roads.
Meanwhile ， for some important parts ， like suspension and spring , We use widening and thickening that in large part ensure the handling of bad road conditions. and famous brand WABCO emergency valve ，JOST C200 Langindg gear.
Main specification - TITAN 80 Ton Lowbed semi Trailer 3 axle
Brand: TITAN 80 Ton Lowbed Trailer 3 axles
Overall dimension: 16500mm X 2500mm X 2200mm
Loading capacity: 80 ton
Axle: 3 axles
Suspension: Heavy duty mechanical spring suspension
Tire: 12 units
Landing gear: JOST
Brake system: WABCO
King pin: 90#
Electical system: 24V, LED lights

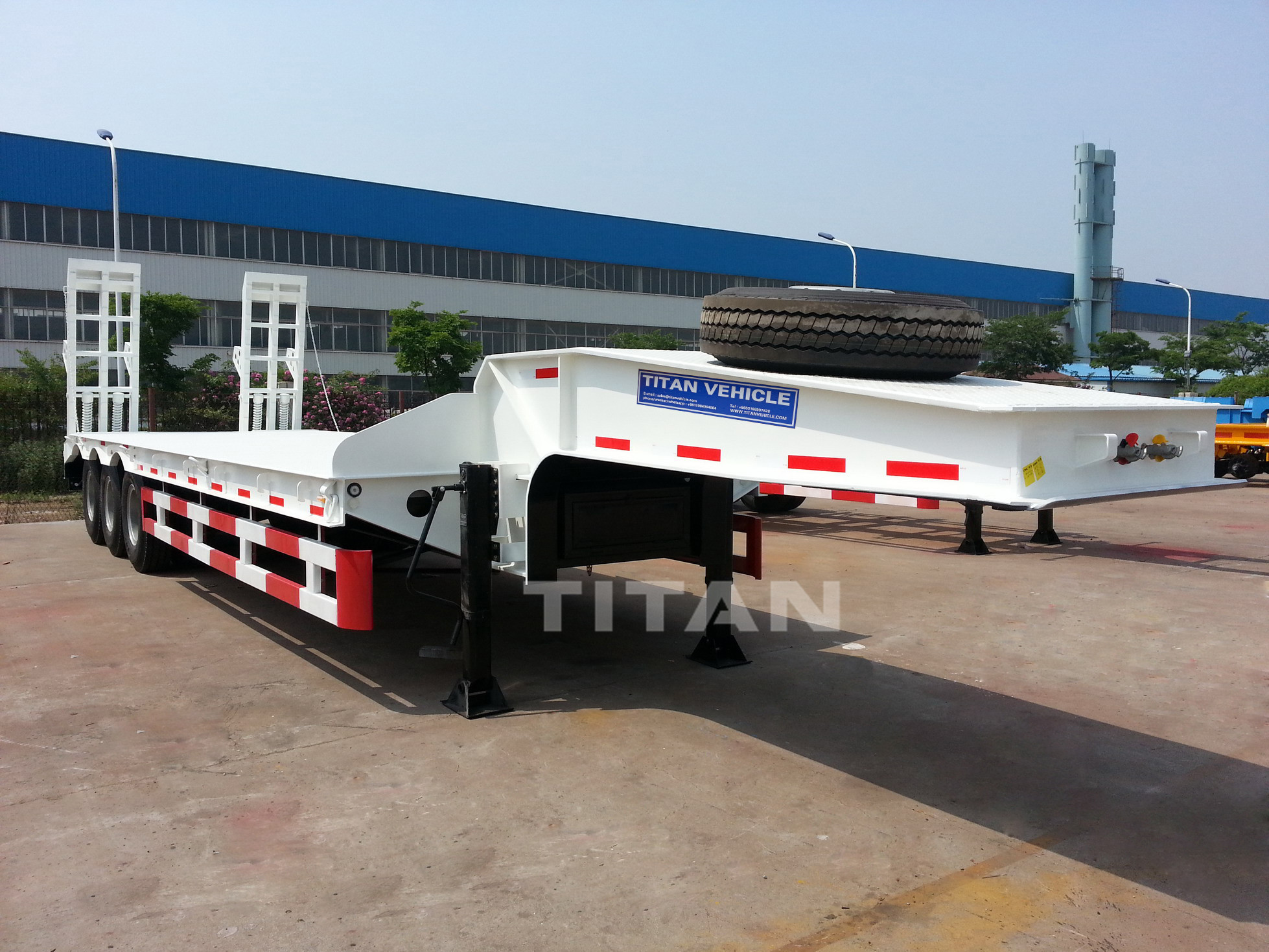

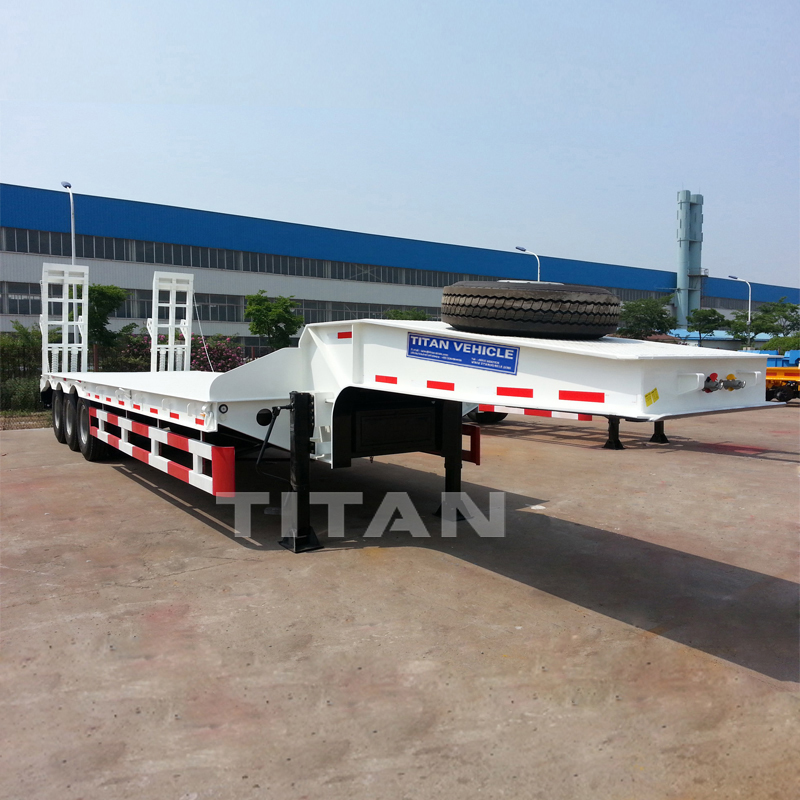

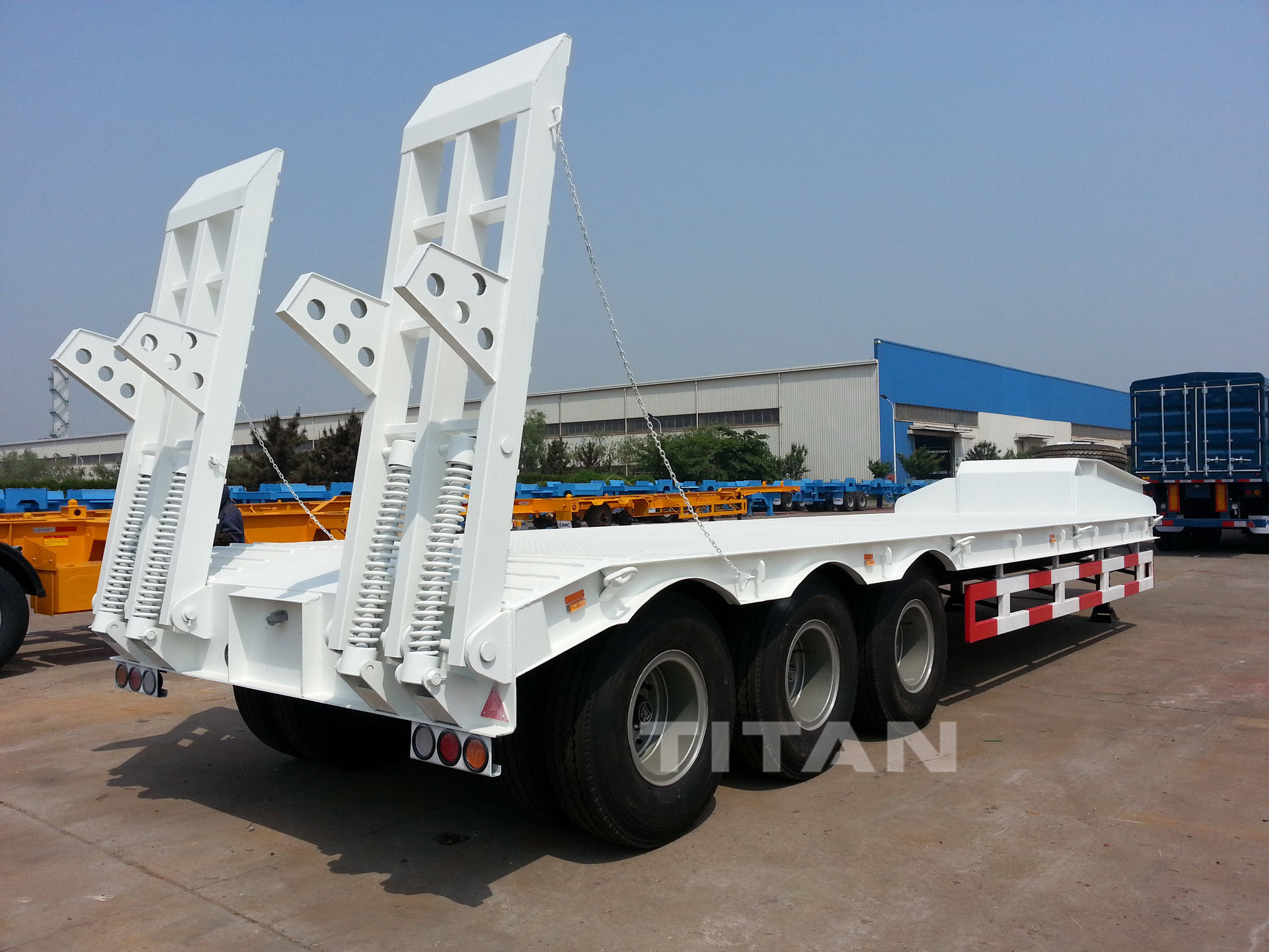

Details of TITAN 80Ton Lowbed Trailer 3 axles
TITAN Vehicle has built a large-scale modern plant , the most advanced semi trailer assembly line, spray chamber, and process equipment, the annual design and production capacity of which can reach 3000 unties. with good equipment and process,by these,the company can ensure the making of products
If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
